Configure Fax Voip with MondoTalk

MondoTalk SIP service provider is located in Australia. MondoTalk supports both T.38 and audio faxes. Please note that we have tested T.38 only for outgoing calls to Australia.

MondoTalk

www.mondotalk.com Sign Up

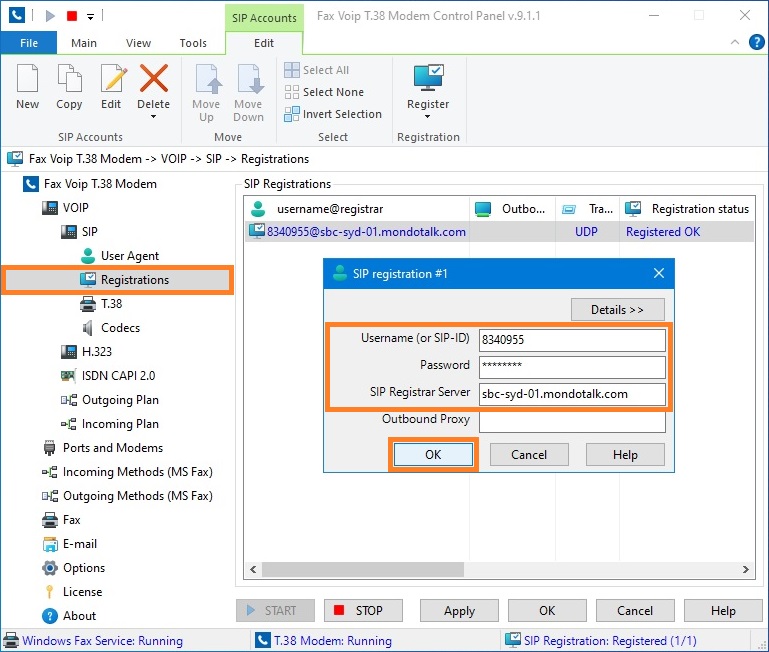

Configure SIP account

SIP account



Username (or SIP-ID): the username provided by the MondoTalk

Password: password

SIP Registrar Server: sbc-syd-01.mondotalk.com

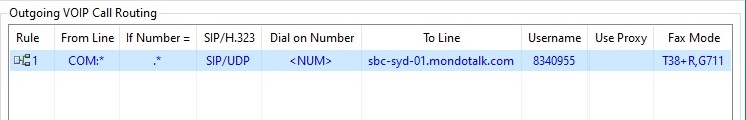

Configure Outgoing Call Routing

Outgoing Call Routing

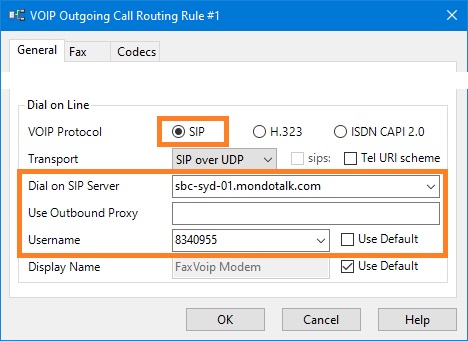

On the General page, in the Dial on Line area, check that the following settings are used:

VOIP Protocol: SIP

Dial on SIP Server: sbc-syd-01.mondotalk.com

Username: the username provided by the MondoTalk



General Settings

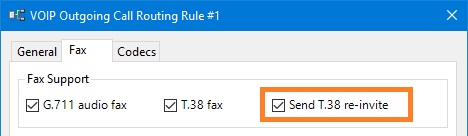

On the Fax page, in the Fax Support area, check that Send T.38 re-invite option is selected. This applies to the rule where you have From Line = COM:* and to the rule where you have From Line =<T38FAX>.



Fax Settings



When sending a fax using Fax Voip Virtual Printer, it is recommended to choose T.38 support option in the Fax Voip Send Fax Wizard window.
