Configure Fax Voip with babyTEL

Popular SIP provider in the United States and Canada. babyTEL supports both T.38 and audio faxes. This service provider also offers phone numbers in the US/Canada.

babyTEL

us.babytel.net Sign Up

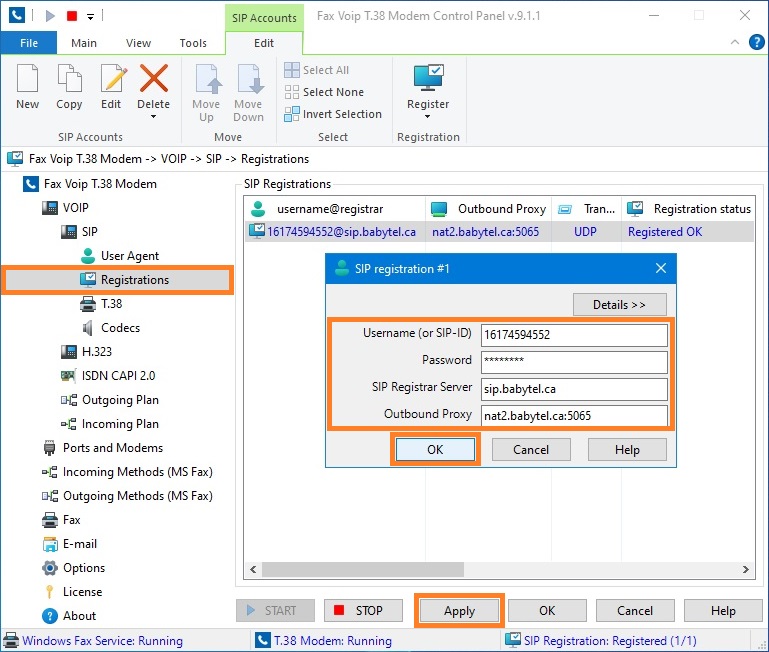

Configure SIP account

SIP account



Username (or SIP-ID): the phone number provided by the babyTEL

Password: password

SIP Registrar Server: sip.babytel.ca

Outbound Proxy: nat2.babytel.ca:5065

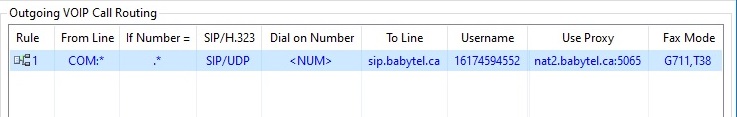

Configure Outgoing Call Routing

Outgoing Call Routing

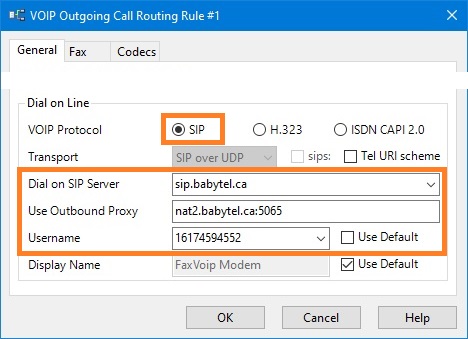

On the General page, in the Dial on Line area, check that the following settings are used:

VOIP Protocol: SIP

Dial on SIP Server: sip.babytel.ca

Use Outbound Proxy: nat2.babytel.ca:5065

Username: the phone number provided by babyTEL



General Settings



On the Fax page, in the Fax Support area, check that T.38 fax option is selected. This applies to the rule where you have From Line = COM:* and to the rule where you have From Line =<T38FAX>.



Fax Settings



When sending a fax using Fax Voip Virtual Printer, it is recommended to choose T.38 support option in the Fax Voip Send Fax Wizard window.

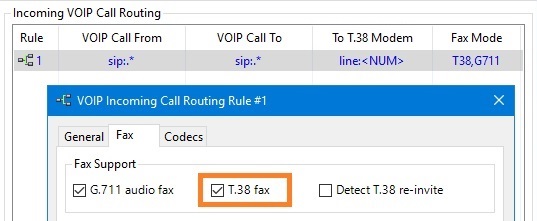

Configure Incoming Call Routing

On the Fax page, in the Fax Support area, check that T.38 fax option is selected.



Incoming Call Routing
