To configure Fax Software

The examples below shows how to configure standard fax software to operate with Fax Voip T.38 Modem when 3rd Party Virtual COM Ports are used.

It is assumed that Virtual COM Port Pair COM10<>COM11 already installed on your system.

It is also assumed that First port COM10 from COM10<>COM11 pair is connected to Fax Voip T.38 Modem, see in the chapter To configure Fax Voip T.38 Modem with Virtual COM Port Pair of this user manual.

Also assumed that the Fax Voip 14.4K TAPI Voice-Fax Modem attached to Second port COM11 from COM10<>COM11 pair, see in the chapter To attach modem to Virtual COM Port Pair of this user manual.

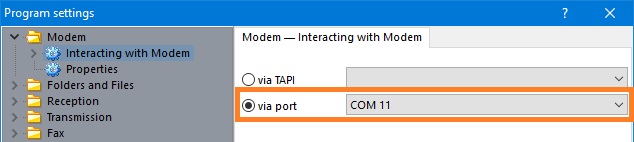

To connect using direct connection to COM Port

Configure your fax software to use the Second port COM11 from COM10<>COM11 pair.

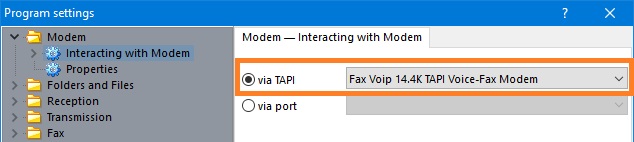

To connect using modem driver

Configure your fax software to use Fax Voip 14.4K TAPI Voice-Fax Modem attached to the Second port COM11 from COM10<>COM11 pair.

Notes

• To operate with Eterlogic.com emulation via Fax Voip 14.4K TAPI Voice-Fax Modem driver is not possible. If your fax application requires a modem driver installed, use Eltima Virtual Serial Ports (see more details in the Using Fax Voip T.38 Modem with Eltima Virtual Serial Port Driver chapter of this guide).
