Monitoring and notifying

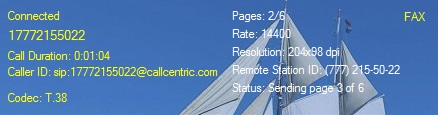

When sending a fax, the information about outgoing fax progress is displayed in the Info panel in the main window. The following fax related information can be viewed:

• FAX. This indicator in the upper right corner shows that the line is currently used to send or receive a fax.
• PLAY. In the fax mode, this indicator in the upper right corner shows that the Voice announcement before sending fax is currently played.
• Codec. When transmitting T.38 fax, Codec: T.38 is displayed. When transmitting audio fax (fax over G.711 codec), Codec: G.711-uLaw-64k or Codec: G.711-ALaw-64k are displayed.
• Pages. The number of successfully sent pages and the total number of pages in the outgoing fax.
• Rate. Transmission rate. The 'e' attribute is used to indicate Error Correction Mode (ECM).
• Resolution. This field contains the resolution information for transmitted faxes: Normal for 204 x 98 dots per inch (dpi), Fine for 204 x 196 dpi.
• Remote Station ID. The Called Subscriber ID (CSID) received from the fax recipient.
• Status. Current status of the fax transmission.

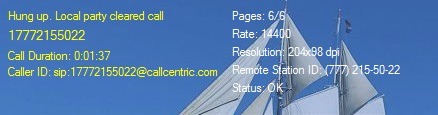

In the case of a successful fax transmission, the Status: OK message is displayed in the Info panel.

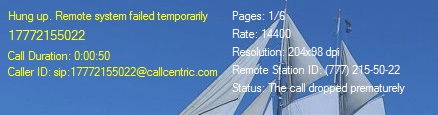

If the fax transmission failed, the operation completion code containing the fax sending error is displayed in the Status field.

Outgoing fax notifications

Fax notifications are used to indicate the success or failure of faxes been sent. To enable or disable notifications, see in the Tray Notifications chapter of this user manual, The fax was sent successfully sent and The fax could not be sent options.

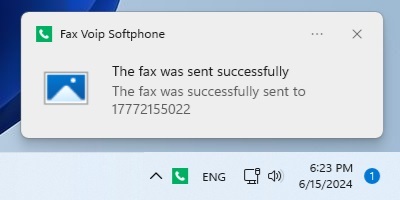

In the case of a successful fax transmission, The fax was sent successfully tray notification message is displayed. Clicking on the notification opens the Sent Faxes folder in the Log Book, where you can view more information about the fax.

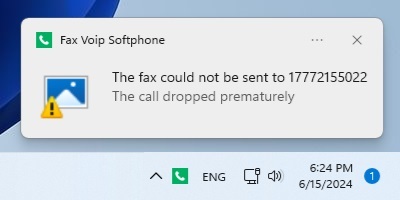

If the fax transmission failed, The fax could not be sent tray notification message is displayed. Clicking on the notification opens the Sent Faxes folder in the Log Book, where you can view more information about the fax.
