To automatically switch to fax mode

To configure automatic switching to fax mode and sending the pre-selected fax, do the following settings:

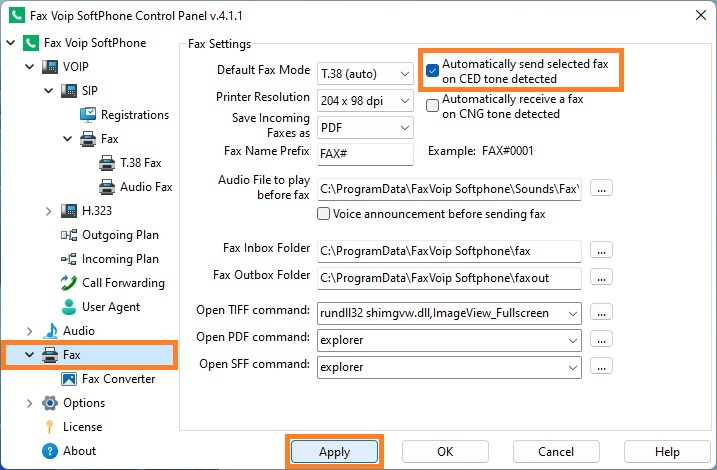

1.     Open Fax Voip Softphone Control Panel.

2.     Click Fax in the tree.

3.     Tick the Automatically send selected fax on CED tone detected option.

4.     Click Apply to save settings. All the changes are applied immediately.

For the successful operation of this function, the fax to be sent must be pre-selected in the Fax folder. To select the fax to be sent, do the following:

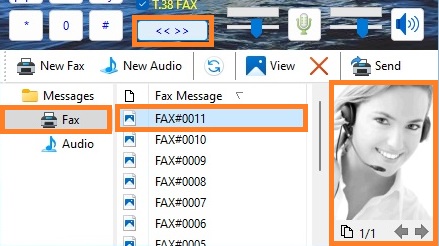

1.     In the main application window, click the Toggle bottom panel (<< >>) button, and then in the Bottom Panel, in the tree click Fax.

2.     Select the fax you want to send.

Upon detection of CED fax tone at the time of established voice call, the Fax Voip Softphone will automatically switch to fax mode and send the selected fax.
