Monitoring and notifying

When receiving a fax, the information about incoming fax progress is displayed in the Info panel in the main window. The following fax related information can be viewed:

• FAX. This indicator in the upper right corner shows that the line is currently used to send or receive a fax.
• Codec. When receiving T.38 fax, Codec: T.38 is displayed. When receiving audio fax (fax over G.711 codec), Codec: G.711-uLaw-64k or Codec: G.711-ALaw-64k are displayed.
• Pages. The number of currently delivered fax pages.
• Rate. Transmission rate. The 'e' attribute is used to indicate Error Correction Mode (ECM).
• Resolution. This field contains the resolution information for received faxes: Normal for 204 x 98 dots per inch (dpi), Fine for 204 x 196 dpi.
• Remote Station ID. The Transmitting Subscriber ID (TSID) received from the fax sender.
• Status. Current status of the fax reception.

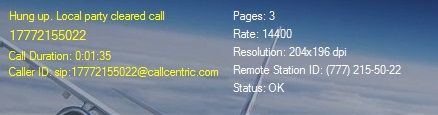

In the case of a successful fax reception, the Status: OK message is displayed in the Info panel.

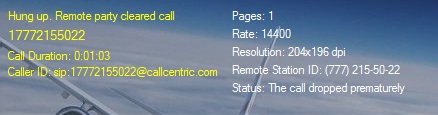

If the fax reception failed, the operation completion code containing the fax reception error is displayed in the Status field.

Incoming fax notifications

Fax notifications are used to indicate the success or failure of faxes been received. To enable or disable notifications, see in the Tray Notifications chapter of this user manual, New fax received and Failed to receive a fax options.

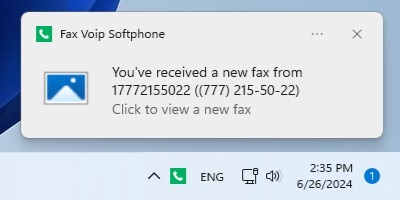

In the case of a successful fax reception, the New fax received tray notification message is displayed. Clicking on the notification opens the Received Faxes folder in the Log Book, where you can view a received fax.

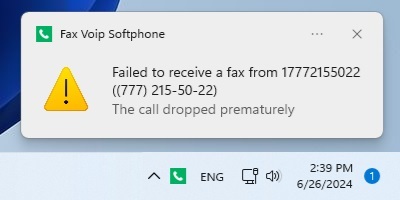

If the fax reception failed, the Failed to receive a fax tray notification message is displayed. Clicking on the notification opens the Received Faxes folder in the Log Book, where you can view more information about the fax.
