To configure Fax Station ID and Fax Headline in Windows 11

Parent Previous Next

Please note that the Use device Transmitting Subscriber ID (TSID) option can be configured using Reinstall Fax Voip FSP Services button in the Fax Voip FSP Control Panel, in the Tools tab of the Ribbon, see Register the Fax Service Provider. In this case, you do not need to manually edit the Windows Registry and restart the Windows Fax Service.



Outgoing Fax. Use Device TSID.


This method does not allow to override Fax Station ID (TSID).


1.     To use this method should change UseDeviceTsid value to 1. Right click the Start button, and then click Run. Type regedit; click OK to start Registry Editor. Find HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Fax section. Create UseDeviceTsid (REG_DWORD) parameter, if does not exist. Change value of UseDeviceTsid to 1. See picture below.



2.     Restart Windows Fax Service. To do it, click Restart Fax Service in the Fax Voip FSP Control Panel, in the Main tab of the Ribbon.

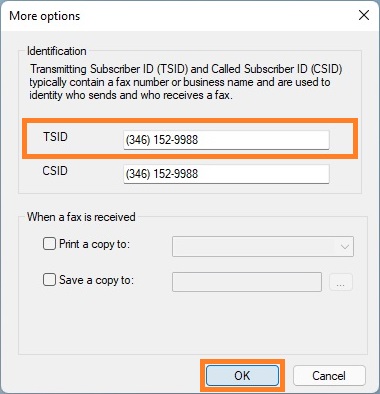

3.     In Windows Fax and Scan, on the Tools menu, click Fax Settings.... In the Fax Settings window, on the General page click More options.... In the More Options window, in the TSID box, specify your Fax Station ID. Maximum length is 20 characters. Click OK. In the Fax Settings window click OK.

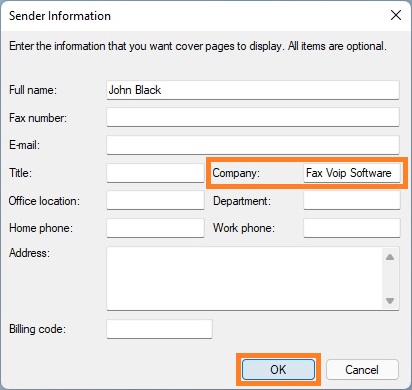

4.     In Windows Fax and Scan, on the Tools menu, click Sender Information.... In the Sender Information window, in the Company box, specify your Fax Headline. Maximum length is 50 characters. Click OK.




Outgoing Fax. Don't use Device TSID.


Using this method you can override Fax Station ID (TSID) when creating a fax.

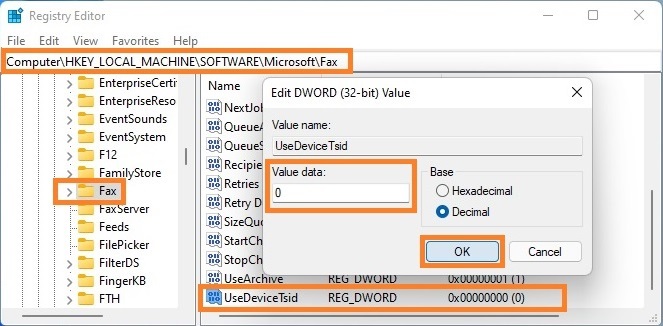

1.     To use this method should change UseDeviceTsid value to 0 (zero). Right click the Start button, and then click Run. Type regedit; click OK to start Registry Editor. Find HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Fax section. Create UseDeviceTsid (REG_DWORD) parameter, if does not exist. Change value of UseDeviceTsid to 0 (zero). See picture below.



2.     Restart Windows Fax Service. To do it, click Restart Fax Service in the Fax Voip FSP Control Panel, in the Main tab of the Ribbon.

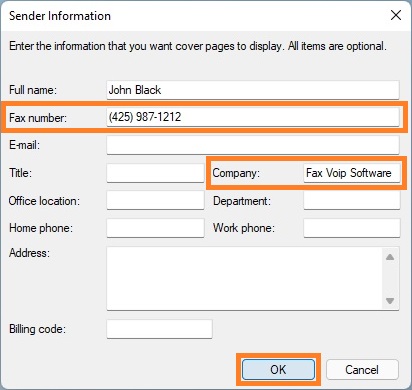

3.     In Windows Fax and Scan, on the Tools menu, click Sender Information.... In the Sender Information window, in the Fax number box, specify your Fax Station ID. Maximum length is 20 characters. In the Company box, specify your Fax Headline. Maximum length is 50 characters. Click OK.




Incoming Fax

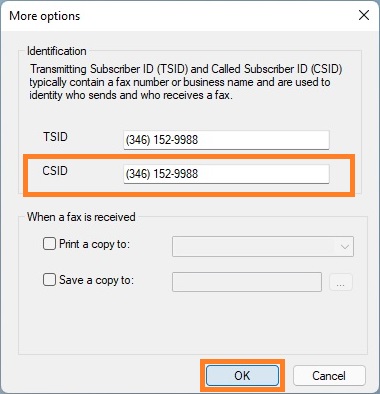

1.     In Windows Fax and Scan, on the Tools menu, click Fax Settings.... In the Fax Settings window, on the General page click More options.... In the More Options window, in the CSID box, specify your Fax Station ID. Maximum length is 20 characters. Click OK. In the Fax Settings window click OK.
