SIP Registrations Settings

Parent Previous Next

Fax Voip T.38 Modem supports Multiple SIP Registrations. You can operate with different SIP servers simultaneously, and (or) to register multiple SIP accounts on the same server. Multiple SIP Registrations feature allows you to receive incoming calls from different SIP networks. To make outgoing calls using different SIP Registrations, should make the appropriate settings in the Outgoing VOIP Call Routing. Fax Voip T.38 Modem supports SIP registration via UDP, via TCP and via TLS. The maximum supported number of SIP registrations is not limited.

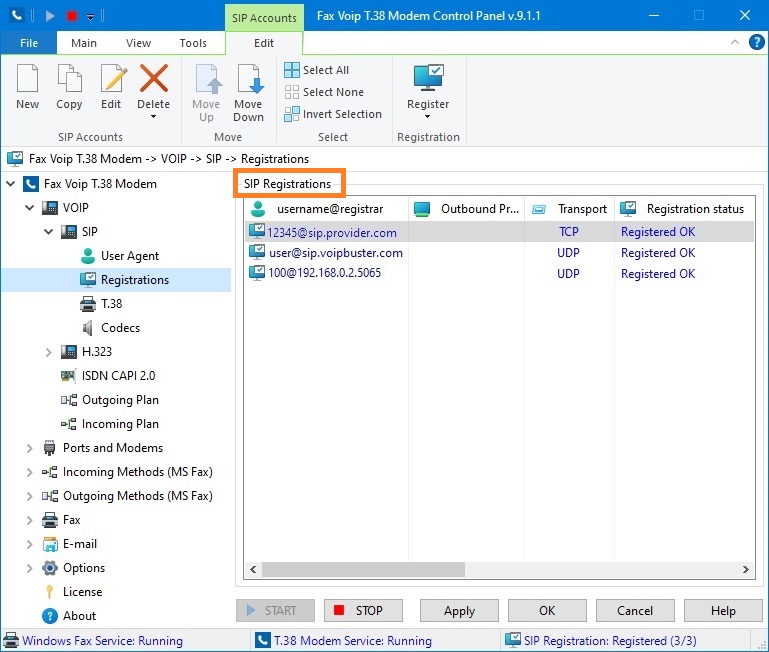

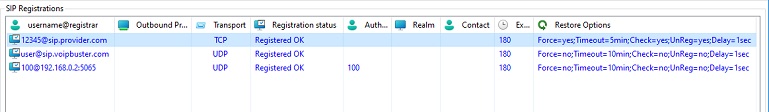

SIP Registrations Table contains the following information:


username@registrar

User account at the server of SIP provider. It consists of two parts: user name (SIP-ID) and name (ip-address) of the server. The second part can also contain the port number. If the server uses a port other than 5060 (default), the port number must be specified.

Outbound Proxy (optional)

Displays the address of SIP proxy server, which is used for registration (if specified). Outbound Proxy name can also contain the port number. If the proxy server uses a port other than 5060 (default), the port number must be specified. Icon => before the name of Outbound Proxy shows that global proxy settings specified in the "Default Outbound Proxy" are used with the current registration. If separate proxy is specified for the current registration, the UDP transport is always used. To use TCP or TLS proxy, should use global proxy settings.

Transport

Indicates transport (UDP, TCP or TLS) that is used with current registration. By default, this transport is also used for incoming calls through the current registration.

Registration status

This field indicates SIP Registration status for current registration entry (OK or description of error). This indicator works when the Fax Voip T.38 Modem is running.

Authentication Name (optional)

Username credential for authantication.

Domain/Realm (optional)

Account domain.

Contact (optional)

Allows to override the Contact field in the SIP message REGISTER. Depending on the settings of SIP server allows to redirect incoming calls to another extension or even to another SIP endpoint.

Expires

SIP Registration timeout. Default value is 180 sec.


Restore Options

Additional options to forcebly restore SIP registration if it is unstable for whatever reason. See also Restore SIP Registration Options chapter of this user manual.


Force=yes

Fax Voip T.38 Modem periodically sends forcible REGISTER request.

Force=no

The restore function is disabled.

Timeout=...min

The interval between sending REGISTER requests, in minutes. Can vary from 1 to 999 minutes.

Check=yes

Fax Voip T.38 Modem does not send the REGISTER request if the current registration status is OK.

Check =no

Forced request is sent regardless of the current registration status.

UnReg=yes

Fax Voip T.38 Modem is trying to cancel the current registration before registering again.

UnReg=no

Fax Voip T.38 Modem sends the REGISTER request without sending command to unregister.

Delay=...sec

The interval between sending unregister and REGISTER commands, in seconds. Can vary from 1 to 10 seconds.



If SIP registration can not be used in the current configuration of the program, Fax Voip T.38 Modem does not load it at startup and ignores this registration.



The SIP registrations that can not be used in the current configuration of the program are always highlighted in red.



The following commands are available in the SIP Accounts Contextual Tab of the Ribbon:


SIP Accounts

New (Ctrl + N)

Click to create new SIP Registration entry.

Copy (Ctrl + C)

Click to create a copy of the selected SIP Registration entry. Can be useful when creating a large number of similar entries. To edit newly created entry, select it and use Edit command.

Edit (Ctrl + E)

Click to edit SIP Registration entry. One of the entries should be selected. Alternatively you can double-click the selected entry.

Delete (Del)

Click to delete one or more SIP Registration entries. One or more entries should be selected.

Delete (Del)

Click to delete one or more SIP Registration entries. One or more entries should be selected.

Delete All

Click to delete all the entries in the list.

Move

Use the commands below to change preference order for different SIP Registrations. One of the entries should be selected.

Move Up (Ctrl + U)

Move the selected item up.

Move Down (Ctrl + D)

Move the selected item down.

Select

Select All (Ctrl + A)

Click to select all the entries in the list.

Select None (Ctrl + O)

Click to unselect all the entries in the list.

Invert Selection (Ctrl + I)

Click to invert the selected entries in the list.

Registration

Use to manually start or stop SIP registation. One of the entries should be selected. See also Test SIP Registration chapter of this user manual.

Register

Click to Register the selected SIP account(s).

Register

Click to Register the selected SIP account(s).

Unregister

Click to Unregister the selected SIP account(s).


Most of the commands placed on the SIP Accounts Contextual Tab are also available from the context menu of the list.
