Depending on the number been dialed outgoing calls can be routed to different SIP or H.323 servers, to H.323 Gatekeeper or implemented using different SIP accounts (SIP registrations). The maximum supported number of Outgoing VOIP Call Routing rules is not limited.

Fax Voip Softphone always checks Outgoing VOIP Call Routing rules, starting with the rule # 1. The call will be routed according to the first rule, which satisfies the conditions of the call. All other rules are ignored. If there is no one rule that satisfies the conditions of the call, the call can not be implemented. To make outgoing calls, you must have at least one rule in the Outgoing VOIP Call Routing table.

Depending on the number been dialed outgoing calls can be routed to

• SIP network
• H.323 network

The rules of different types (SIP or H.323) highlighted in different colors in the Outgoing VOIP Call Routing table.

Outgoing SIP calls can be routed to

• SIP server with which Fax Voip Softphone is registered, the call can be implemented using selected SIP account (username)
• another IP address (SIP server name) that is not associated with the entry in the SIP registrations table

Outgoing H.323 calls can be routed to

• H.323 Gatekeeper with which Fax Voip Softphone is registered
• another IP address (H.323 server name) that is not associated with H.323 Gatekeeper

The following translation rules can be applied to the dialed number:

• the specified prefix can be added to the phone number
• the specified first few digits can be removed from phone number

The following call and fax settings can be set or overridden by the Outgoing VOIP Call Routing rule:

• UDP or TCP transport can be selected for SIP calls
• Tel URI scheme can be used (with outgoing SIP calls only)
• Username (Caller ID Number)
• Display Name (Caller ID Name)
• Maximum Fax Bitrate
• ECM (Error Correction Mode)
• Forced switching to T.38 mode based on timer
• Forced switching to T.38 mode based on receiving CED or CNG fax tones
• T.38 Redundancy
• Fax Station ID
• Fax Header

If there are no rules in the Outgoing VOIP Call Routing table and there is at least one SIP registration entry in the SIP registration table, Fax Voip Softphone automatically invites to create default rule for Outgoing calls at the time of clicking <Apply> or <OK> button.

The default rule is as follows:

• All outgoing calls are routed to the first SIP Registration without number translation.

If the rules of some kind can not be used in the current configuration of the program, Fax Voip Softphone does not load them at startup and ignores these rules.

• If Enable SIP option is unchecked (SIP is disabled, see in the VOIP Settings), Fax Voip Softphone does not load and ignores rules that route calls to SIP network.
• If Enable SIP over UDP Transport option is unchecked (SIP over UDP is disabled, see in the SIP Settings), Fax Voip Softphone does not load and ignores rules that route calls using SIP over UDP transport.
• If Enable SIP over TCP Transport option is unchecked (SIP over TCP is disabled, see in the SIP Settings), Fax Voip Softphone does not load and ignores rules that route calls using SIP over TCP transport.
• If Enable H.323 option is unchecked (H.323 is disabled, see in the VOIP Settings), Fax Voip Softphone does not load and ignores rules that route calls to H.323 network.

The rules that can not be used in the current configuration of the program are always highlighted in red.

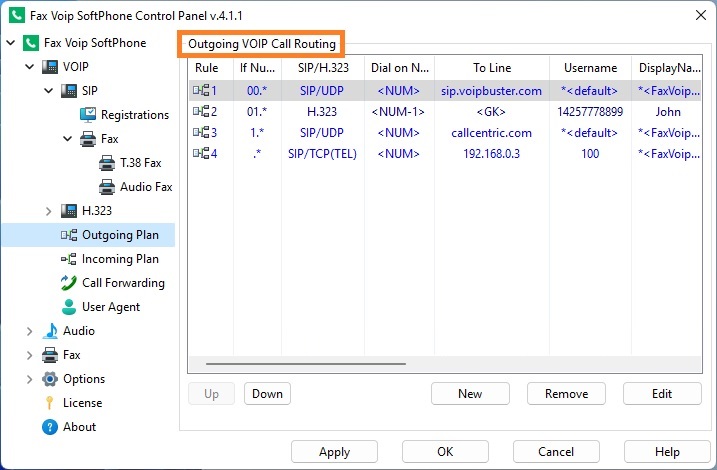

Outgoing VOIP Call Routing Table contains the following information:



Rule

Unique number of the current rule.

If Number =

Specifies the format of outgoing phone numbers for which this rule applies. For example ' .* ' means “all numbers”.

SIP/H.323

Specifies whether the outgoing call will be routed to the SIP or H.323 network. In the case of SIP, this field also indicates transport to be used (UDP or TCP) and whether Tel URI scheme is used in SIP INVITE message.

Dial on Number

Specifies Translation Rule for outgoing phone numbers. For example '<NUM>' means “without translation”, '9<NUM>' means “Prepend 9 before number”, '<NUM-2>' means “Remove first 2 digits”.

To Line

Displays SIP or H.323 server name or IP-address to which the call will be routed.

<GK> means that the call will be routed via H.323 Gatekeeper. In the case of H.323, if the registration with H.323 Gatekeeper is used, should understand that outgoing H.323 calls to arbitrary IP addresses may be prohibited by the Gatekeeper policy.

In the case of SIP, depending on the values of Username (see below) and some other Fax Voip Softphone parameters the behavior can be different:

Case 1:

1.     To Line = 'sip.server.com'

2.     Username = '*<default>'

3.     There is at least 1 entry in the SIP Registration table with

username@registrar = '<name>@sip.server.com', where <name> - any name.

The call will be routed using the first SIP Registration entry for the specified server.

Case 2:

1.     To SIP Line = 'sip.server.com'

2.     Username = 'NAME'

3.     There is an entry in the SIP Registration table with

username@registrar = 'NAME@sip.server.com'.

The call will be routed via SIP Registration entry 'NAME@sip.server.com'.

Case 3:

1.     To SIP Line = 'sip.server.com'

2.     Username = 'NAME'

3.     The server name is the same as the name of default proxy server (see in the Outbound Proxy Settings). The Username is the same as the Proxy Username. Use default Outbound Proxy option is checked.

The call will be routed to default Proxy. The username and password specified in the proxy settings can be used for authantication.

Case 4:

1.     To SIP Line = 'sip.server.com'

2.     Username = '*<default>'

3.     There are no SIP Registration entries with

username@registrar = '<name>@sip.server.com', where <name> - any name.

The call will be routed to sip.server.com with default SIP Username, specified in the SIP Settings (usually FaxVoip). This method can be used if authantication is not required.

Case 5:

1.     To SIP Line = 'sip.server.com'

2.     Username = 'NAME'

3.     There are no SIP Registration entries with

username@registrar = 'NAME@sip.server.com'.

The call will be routed to sip.server.com with username NAME. This method can be used if authantication is not required. Digital NAME usually displayed at other side as NUMBER part of Caller ID.

Username

In the case of SIP, Username (SIP-ID) that will be used with the rule. Usually coincide with the Username of one of the SIP registrations. If you use *<default>, you should understand that Fax Voip Softphone can use the Username of one of the SIP registrations or default username, specified in the SIP Settings (usually FaxVoip) in this case. Different behaviors are considered in the description of To Line field. Digital Username usually displayed at other side as NUMBER part of Caller ID.

In the case of H.323, this parameter allows to override the default Caller ID Number. If you use *<default>, should understand that the top number from the Telephone numbers list (see in the H.323 settings) will be recognized by remote party as Caller ID Number.

DisplayName

Name you would like to be reported to other users. DisplayName usually displayed at other side as the NAME part of Caller ID. This option overwrites the default Sip Display Name, specified in the SIP Settings or the default H.323 Display Name, specified in the H.323 settings. *<> indicates, that the default Sip Display Name or H.323 Display Name is used.

Use Proxy

Displays the address of SIP Outbound Proxy, which is used with outgoing SIP calls (if specified). Using of different Outbound Proxy servers for SIP Registration and for Outgoing Calls via this registration is not recommended. Icon '=>' before the name of Outbound Proxy shows that you are using the Default Outbound Proxy setting, and it is used for outgoing SIP calls with the current rule.

Audio Fax Tweaks

Individual Audio Fax options that override the general options that are specified in the Audio Fax Settings (SIP) or Audio Fax Settings (H.323).

Possible Audio Fax Tweaks options are:

MaxRate_out

Maximum bitrate for outgouing audio faxes (Fax over G.711 codec). Maximum bitrate value can be set 14400/9600/4800 which corresponds to rate limits of standard protocols used for facsimile. This option overwrites the default maximum bitrate, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Transmission=>Maximum bitrate” field (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Transmission=>Maximum bitrate” field (in the case of H.323).

ECM_out (0 – disabled, 1 - enabled)

Possibility to use Error Correction Mode for outgouing audio faxes (Fax over G.711 codec). This option overwrites the default settings, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Transmission=>Enable Error Correction Mode” (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Transmission=>Enable Error Correction Mode” (in the case of H.323).

MaxRate_in

Maximum bitrate for incoming audio faxes (Fax over G.711 codec). Maximum bitrate value can be set 14400/9600/4800 which corresponds to rate limits of standard protocols used for facsimile. This option overwrites the default maximum bitrate, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Reception=>Maximum bitrate” field (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Reception=>Maximum bitrate” field (in the case of H.323).

ECM_in (0 – disabled, 1 - enabled)

Possibility to use Error Correction Mode for incoming audio faxes (Fax over G.711 codec). This option overwrites the default settings, specified in the “SIP=>Fax=>Audio Fax=>Audio Fax Reception=>Enable Error Correction Mode” (in the case of SIP) or in the “H.323=>Fax=>Audio Fax=>Audio Fax Reception=>Enable Error Correction Mode” (in the case of H.323).

T.38 Fax Tweaks

Individual T.38 Fax options that override the general options that are specified in the T.38 Fax Settings (SIP) or T.38 Fax Settings (H.323).

Possible T.38 Fax Tweaks options are:

T38MaxRate_out

Maximum bitrate for outgouing T.38 faxes. Maximum bitrate value can be set 14400/9600/4800 which corresponds to rate limits of standard protocols used for facsimile. This option overwrites the default maximum bitrate, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Maximum bitrate” field (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Maximum bitrate” field (in the case of H.323).

T38ECM_out (0 – disabled, 1 - enabled)

Possibility to use Error Correction Mode for outgouing T.38 faxes. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Enable Error Correction Mode” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Enable Error Correction Mode” (in the case of H.323).

T38SwitchOnTimer_out (Off – disabled, 0-20 – delay in seconds)

Forced switching to T.38 mode immediately (0 seconds) or after the specified time interval (1-20 seconds) for outgouing faxes. Fax Voip Softphone sends T.38 re-invite to the other side without waiting for T.38 re-invite or CED tone from the other side. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Switch to T.38 after ... seconds” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Switch to T.38 after ... seconds” (in the case of H.323).

T38SwitchOnCED_out (0 – disabled, 1 - enabled)

Forced switching to T.38 mode if the fax machine specific tone (CED signal) is detected when sending a fax. Fax Voip Softphone sends T.38 re-invite to the other side without waiting for T.38 re-invite from the other side. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Switch to T.38 on CED tone received” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Transmission=>Switch to T.38 on CED tone received” (in the case of H.323).

T38MaxRate_in

Maximum bitrate for incoming T.38 faxes. Maximum bitrate value can be set 14400/9600/4800 which corresponds to rate limits of standard protocols used for facsimile. This option overwrites the default maximum bitrate, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Reception=>Maximum bitrate” field (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Reception=>Maximum bitrate” field (in the case of H.323).

T38ECM_in (0 – disabled, 1 - enabled)

Possibility to use Error Correction Mode for incoming T.38 faxes. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Reception=>Enable Error Correction Mode” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Reception=>Enable Error Correction Mode” (in the case of H.323).

T38SwitchOnTimer_in (Off – disabled, 0-20 – delay in seconds)

Forced switching to T.38 mode immediately (0 seconds) or after the specified time interval (1-20 seconds) for incoming faxes. Fax Voip Softphone sends T.38 re-invite to the other side without waiting for T.38 re-invite or CNG tone from the other side. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Reception=>Switch to T.38 after ... seconds” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Reception=>Switch to T.38 after ... seconds” (in the case of H.323).

T38SwitchOnCNG_in (0 – disabled, 1 - enabled)

Forced switching to T.38 mode if the fax machine specific tone (CNG signal) is detected when receiving a fax. Fax Voip Softphone sends T.38 re-invite to the other side without waiting for T.38 re-invite from the other side. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 Fax Reception=>Switch to T.38 on CNG tone received” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 Fax Reception=>Switch to T.38 on CNG tone received” (in the case of H.323).

T38Redundancy

T.38 Redundancy in the format I/LS/HS. The values for (I)ndication, (L)ow (S)peed and (H)igh (S)peed IFP packets are specified separately. This option overwrites the default settings, specified in the “SIP=>Fax=>T.38 Fax=>T.38 UDPTL Redundancy” (in the case of SIP) or in the “H.323=>Fax=>T.38 Fax=>T.38 UDPTL Redundancy” (in the case of H.323).

Fax StationID

Fax Station Id option overwrites the default Fax ID, specified in the “SIP=>Fax=>Fax Station ID (default)” (in the case of SIP) or in the “H.323=>Fax=>Fax Station ID (default)” (in the case of H.323). *<> indicates, that the default Fax Station ID is used.

Fax HeadLine

Fax HeadLine option overwrites the default Fax HeadLine, specified in the “SIP=>Fax=>Fax HeadLine (default)” (in the case of SIP) or in the “H.323=>Fax=>Fax HeadLine (default)” (in the case of H.323). *<> indicates, that the default Fax HeadLine is used.

The following commands are available:

<Up> and <Down>

Use these buttons to change preference order for different Outgoing VOIP Call Routing rules. One of the entries should be selected.

<New>

Click to create new Outgoing VOIP Call Routing rule.

<Remove>

Click to delete one or more Outgoing VOIP Call Routing rules. One or more entries should be selected.

<Edit> (or double-click selected entry)

Click to edit Outgoing VOIP Call Routing rule. One of the entries should be selected.

Notes

• You can also do any of the above actions by selecting the appropriate command from the context menu of the list.
