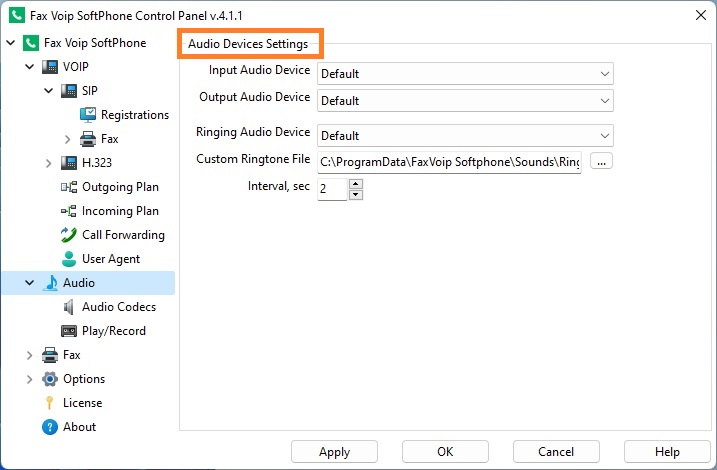

Input Audio Device

Audio device (microphone) to be used for input audio. You can use the Default device or select the input device from dropdown list. Keep in mind that the drivers for the selected device must be properly installed and recognized by Windows.

Output Audio Device

Audio device (speakers or headsets) to be used for output audio. You can use the Default device or select the output device from dropdown list. Keep in mind that the drivers for the selected device must be properly installed and recognized by Windows.

Ringing Audio Device

Output audio device to be used to ring for incoming calls. You can use the Default device or select the output device from dropdown list. Keep in mind that the drivers for the selected device must be properly installed and recognized by Windows.

Custom Ringtone File

Ringtone file to be played when you receive an incoming call. You can browse to a preferred ring tone or enter the file path. A ring tone file must be a wave file (.wav). Additional restrictions on the format of this file are not imposed. Examples of ringtones can be found in the *{CommonAppDataFolder}\FaxVoip Softphone\Sounds\Rings folder after the installation of the Fax Voip Softphone. By default the ring_0.wav file is used.

Interval, sec (0 - 10 sec)

Interval between repeats when playing the Custom Ringtone File.

Notes

• *{CommonAppDataFolder} - the system file directory containing application data for all users. The name of this folder is usually C:\ProgramData.
