G711 Fax Mode (G711)

Fax Voip T.38 Modem will start in the mode of sending G711 fax. In the case of receiving T.38 re-invite from the other side, Fax Voip T.38 Modem answers 'not supported' and continues to send a fax in audio mode, if the parties believe that this is possible. To set this mode in VOIP Outgoing Call Routing rule:

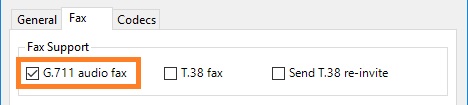

1.     Check G.711 audio fax option.

2.     Uncheck T.38 fax option.

3.     Uncheck Send T.38 re-invite option.

Notes

• It is recommended to use this mode with providers that do not support T.38 standard.
• G.711 audio fax mode is always used when sending a fax via ISDN CAPI 2.0 line.
