To Configure Incoming Fax Mode

1.     Open Fax Voip T.38 Modem Control Panel.

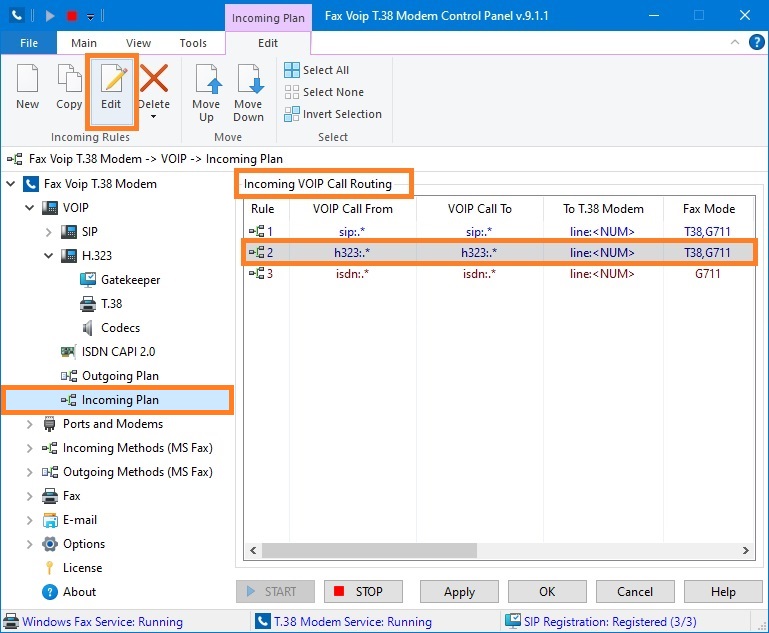

2.     Click VOIP in TreeView, then click Incoming Plan.

3.     To create new rule click New. To edit an existing rule select it and click Edit (or double-click the selected rule).

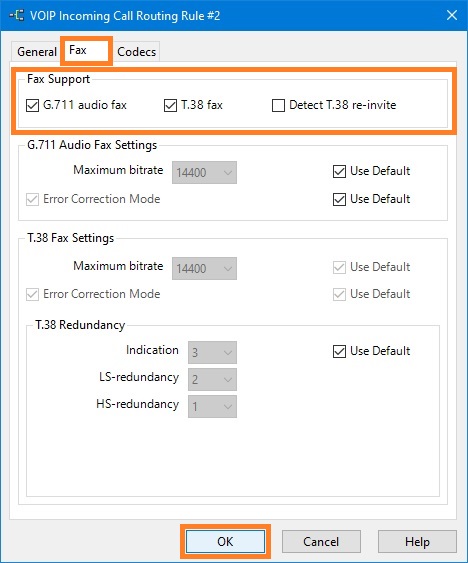

4.     In the VOIP Incoming Call Routing Rule dialog switch to the Fax panel.

5.     In the Fax Support section, check (or uncheck) the appropriate options:

• Select G.711 audio fax option to receive audio faxes.
• Select T.38 fax option to receive T.38 faxes.
• If you select Detect T.38 re-invite option, Fax Voip T.38 Modem will switch to T38 fax only when detecting T.38 re-invite, sent from the other side.

6.     Click <OK> button to fix changes.

7.     Click <Apply> button to save modified settings for rules. Do not forget to restart Fax Voip T.38 Modem to operate with new settings.

Notes

• To avoid possible problems with selecting correct Fax Mode, it is strongly recommended to pre-read detailed descriptions of the possible Incoming Fax Modes.
