Configure Fax Voip T.38 Console with T38FAX

Parent Previous Next

T38FAX service allows you to send and receive T.38 faxes. This service provider also offers phone numbers in the United States. To get an account you can register at the T38FAX website.

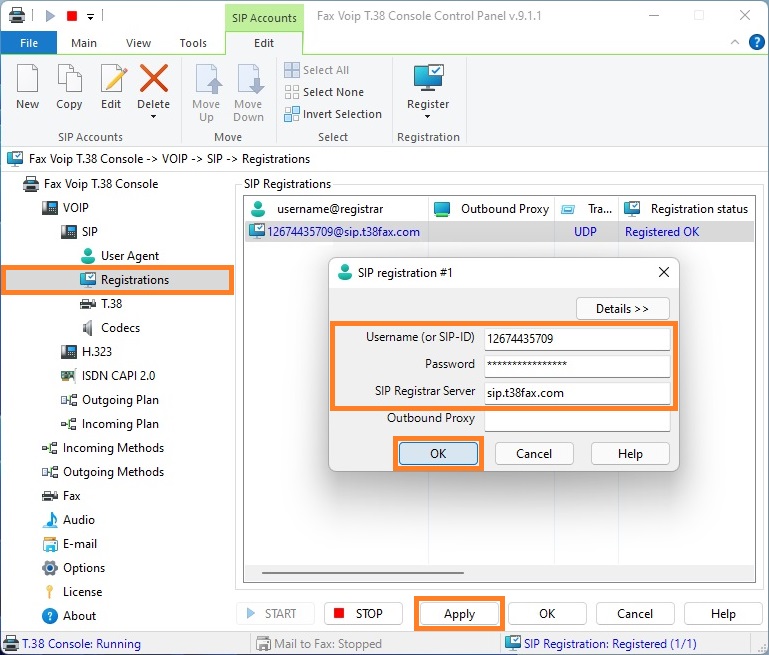

Configure SIP account



Username (or SIP-ID): the phone number provided by T38FAX

Password: password

SIP Registrar Server: sip.t38fax.com

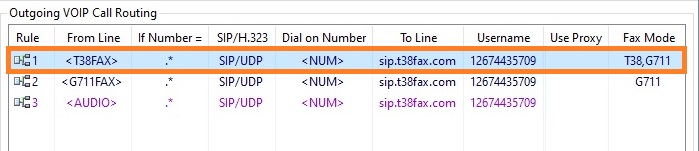

Configure Outgoing Call Routing

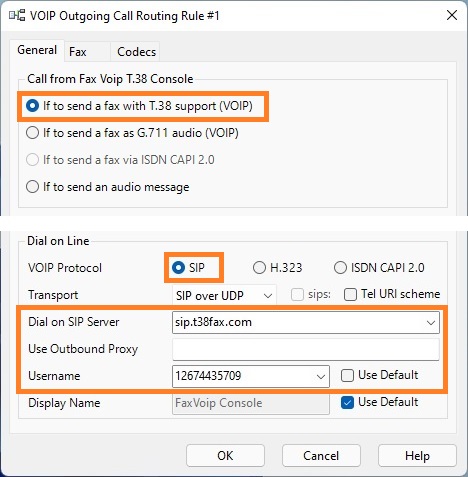

On the General page, in the Dial on Line area, check that the following settings are used:


VOIP Protocol: SIP

Dial on SIP Server: sip.t38fax.com

Username: the phone number provided by T38FAX



On the Fax page, in the Fax Support area, make sure that T.38 fax option is selected. This applies to the rule where you have From Line = <T38FAX>.



When sending a fax using Fax Voip Virtual Printer, choose T.38 support option in the Fax Voip T.38 Console Send Fax Wizard window.

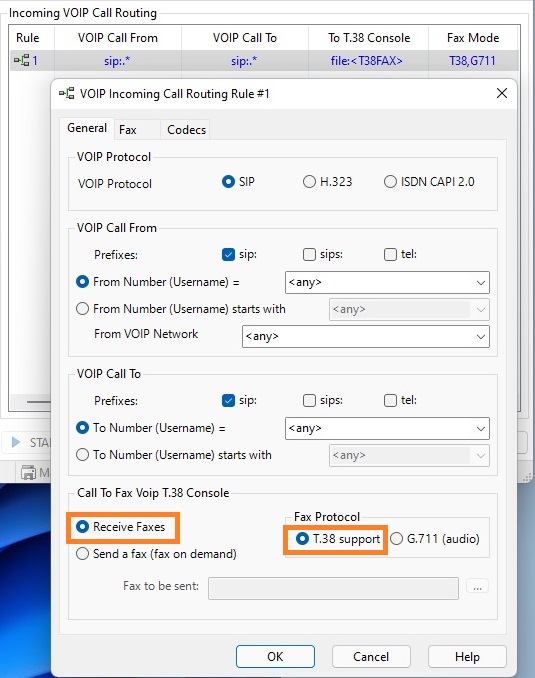

Configure Incoming Call Routing


On the General page, in the Call To Fax Voip T.38 Console area, select Receive Faxes, and then select T.38 support option.
