Store in a folder Outgoing Routing Method

Parent Previous Next

When sending faxes and audio messages, you can configure Store in a folder Outgoing Routing Method to copy outgoing faxes and audio messages to specified local or network folders. Depending on the recipient's phone number, type of the call (fax or audio), and the success or failure of sending the fax or audio message, outgoing fax or audio message can be routed to different folders.


The behavior is defined by the so-called rules. Fax Voip T.38 Console always checks Store in a folder rules, starting with the rule # 1. The fax or audio message will be routed according to the first rule, which satisfies the specified conditions. All other rules are ignored. For example, if rule # 1 applies for all outgoing faxes and audio messages ('Recipient Number' = .*; 'Fax' = yes; 'Audio' = yes; 'OK' = yes; 'Failed' = yes), then other rules # 2, # 3, etc. applied to outgoing faxes and audio messages never be able to work under any conditions.


Every rule can be enabled or disabled. If the rule is disabled, Fax Voip T.38 Console takes this rule into account (as in the case of enabled) but does not copy faxes and audio messages to the specified folders. This can be used to temporarily disable store in a folder procedure for a specified recipient's phone number.


To store an outgoing fax or audio message in the specified folder, you must:



Outgoing fax or audio message can be routed to one or more local or network folders. The format for saving outgoing faxes can be TIFF, PDF or SFF. Audio messages can be stored in WAV format.


The maximum supported number of Store in a folder rules is specified by the current license. The rules that can not be used in the current configuration of the program are always highlighted in red and ignored.


To view Store in a folder routing method log, use Enable 'Store in a folder' outgoing routing method debug logging option, see more details in the Outgoing Routing Methods Logs chapter of this user manual.

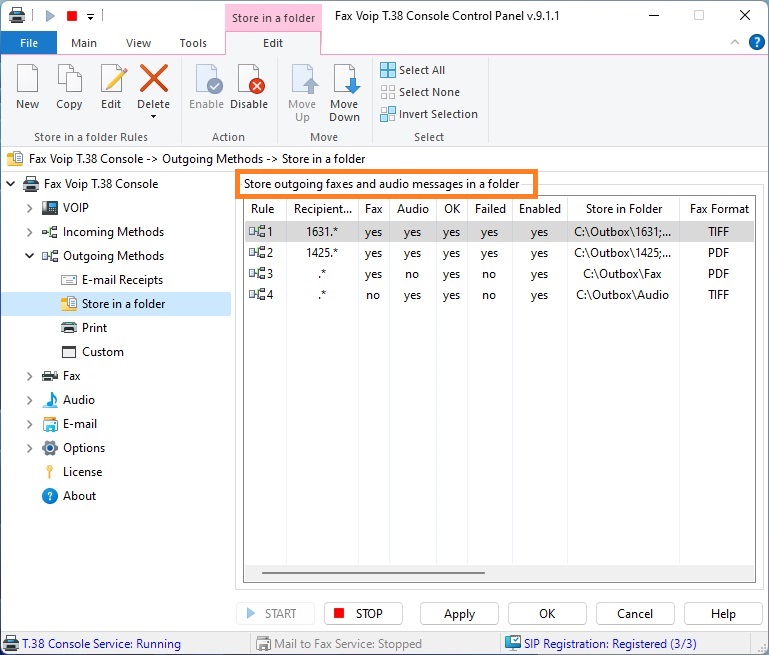

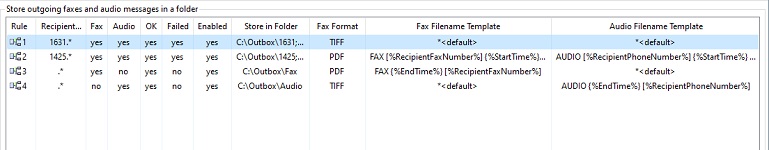

Store outgoing faxes and audio messages in a folder table contains the following information:


Rule

Unique number of the current rule.

Recipient Number

Specifies the recipient's phone number pattern for which the rule applies.

Fax

Specifies whether the rule applies when sending a fax.

Audio

Specifies whether the rule applies when sending audio message.

OK

Specifies whether the rule applies for successfully sent faxes and audio messages.

Failed

Specifies whether the rule applies for failed fax or audio message sending.

Enabled

Specifies whether store in a folder procedure enabled or disabled. If the rule is disabled, Fax Voip T.38 Console takes this rule into account (as in the case of enabled) but does not copy faxes and audio messages to the specified folders. This can be used to temporarily disable store in a folder procedure for a specified recipient's phone number.

Store in Folder

Displays folders locations for storing copies of outgoing faxes and audio messages.

Fax Format

Specifies the format for saving outgoing faxes. Can be TIFF, PDF or SFF.

Fax Filename Template

Specifies the custom filename template to be used when copying outgoing faxes to the specified folder(s). When specifying the default filename template, file names are generated based on the current date and time, and also random value.

Audio Filename Template

Specifies the custom filename template to be used when copying outgoing audio messages to the specified folder(s). When specifying the default filename template, file names are generated based on the current date and time, and also random value.



The following commands are available in the Store in a folder Contextual Tab of the Ribbon:


Store in a folder Rules

New (Ctrl + N)

Click to create new Store in a folder rule.

Copy (Ctrl + C)

Click to create a copy of the selected Store in a folder rule. Can be useful when creating a large number of similar rules. To edit newly created rule, select it and use Edit command.

Edit (Ctrl + E)

Click to edit Store in a folder rule. One of the entries should be selected. Alternatively you can double-click the selected entry.

Delete (Del)

Click to delete one or more Store in a folder rules. One or more entries should be selected.

Delete (Del)

Click to delete one or more Store in a folder rules. One or more entries should be selected.

Delete All

Click to delete all rules in the list.

Action

Enable (Ctrl + B)

Click to enable the selected rule(s).

Disable (Ctrl + L)

Click to disable the selected rule(s). If the rule is disabled, Fax Voip T.38 Console takes this rule into account (as in the case of enabled) but does not copy faxes and audio messages to the specified folders. This can be used to temporarily disable store in a folder procedure for a specified recipient's phone number.

Move

Use the commands below to change preference order for different Store in a folder rules. One of the entries should be selected.

Move Up (Ctrl + U)

Move the selected rule up.

Move Down (Ctrl + D)

Move the selected rule down.

Select

Select All (Ctrl + A)

Click to select all the entries in the list.

Select None (Ctrl + O)

Click to unselect all the entries in the list.

Invert Selection (Ctrl + I)

Click to invert the selected entries in the list.


Most of the commands placed on the Store in a folder Contextual Tab are also available from the context menu of the list.
