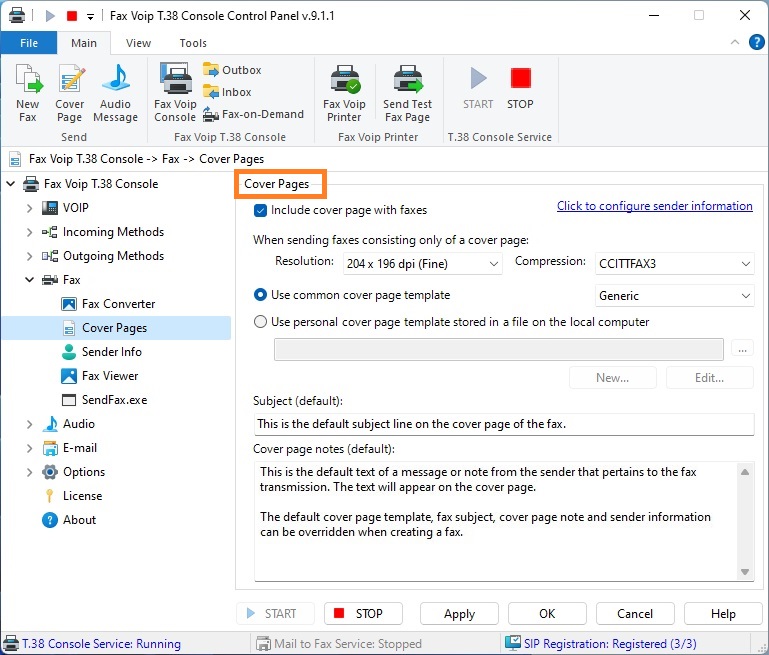

Cover Pages Settings
On this page you can specify default cover page settings that will be used when sending a fax.
A cover page contains user-specified information about a fax sender and a recipient, and often a short message, together with system information, such as transmission date and time. You can use cover pages in different ways. You can send a fax that consists only of a cover page. Your fax message will be included as a cover page note. Alternatively, you can send a cover page in addition to another fax document. For example, you might fax a Microsoft Word document and include a cover page with it. In this case, the cover page will be added to the document and sent as the first page in the fax.
The options below can be overridden in the Fax Voip T.38 Console Send Fax Wizard when creating a fax, or using SendFax.exe command line tool.
Click to configure sender information
Click to switch to the Sender Information page to configure default sender information.
Specifies whether the cover page will be added to the document and sent as the first page in the fax.
Resolution
Select 204x196 dpi (Fine) if you want to send cover page only faxes in high-quality resolution (Fine). Or select 204x98 dpi (Normal) if you want to send cover page only faxes in Normal resolution. In the case of adding cover page to the main document, the resolution of the cover page is assigned automatically.
Compression
Compression format of the output TIFF file when creating cover page only fax. The following formats can be selected: PACKBITS, CCITTFAX3, CCITTFAX4, LZW, NO COMPRESSION. This option does not affect the quality, the time of transmitting and other properties of the fax when sending. This option is ignored in the case of adding cover page to the main document.
If this option selected, the common cover page template will be used. You can choose one of the following predefined templates: Confidential, FYI, Generic and Urgent. Common cover page files are usually stored in the following folder: C:\ProgramData\Microsoft\Windows NT\MSFax\Common Coverpages. Please note that these are standard templates included in the operating system.
If this option selected, the specified personal cover page template stored in a file on the local computer will be used. Click the button to the right of the text box to choose the desired cover page template. Personal cover page files are usually stored in the Personal CoverPages folder: C:\Users\<Account Name>\Documents\Fax\Personal CoverPages, but you can save your cover page template in any other folder on your hard drive and then specify it in the Fax Voip T.38 Console settings.
Click to create new personal cover page template using Fax Cover Page Editor application. By default new template is stored in the Personal CoverPages folder. Alternatively, you can create and manage your personal cover pages using Windows Fax and Scan software (Tools -> Cover Pages... ).
Click to open the selected cover page template in the Fax Cover Page Editor application.
In this box, you can specify the default fax subject. This information is usually displayed on cover page. You can leave this field empty.
In this box, you can specify the default text of a message or note from the sender that will appear on the cover page. You can leave this field empty. Both subject and notes can be specified or overridden in the Fax Voip T.38 Console Send Fax Wizard when sending a fax.
